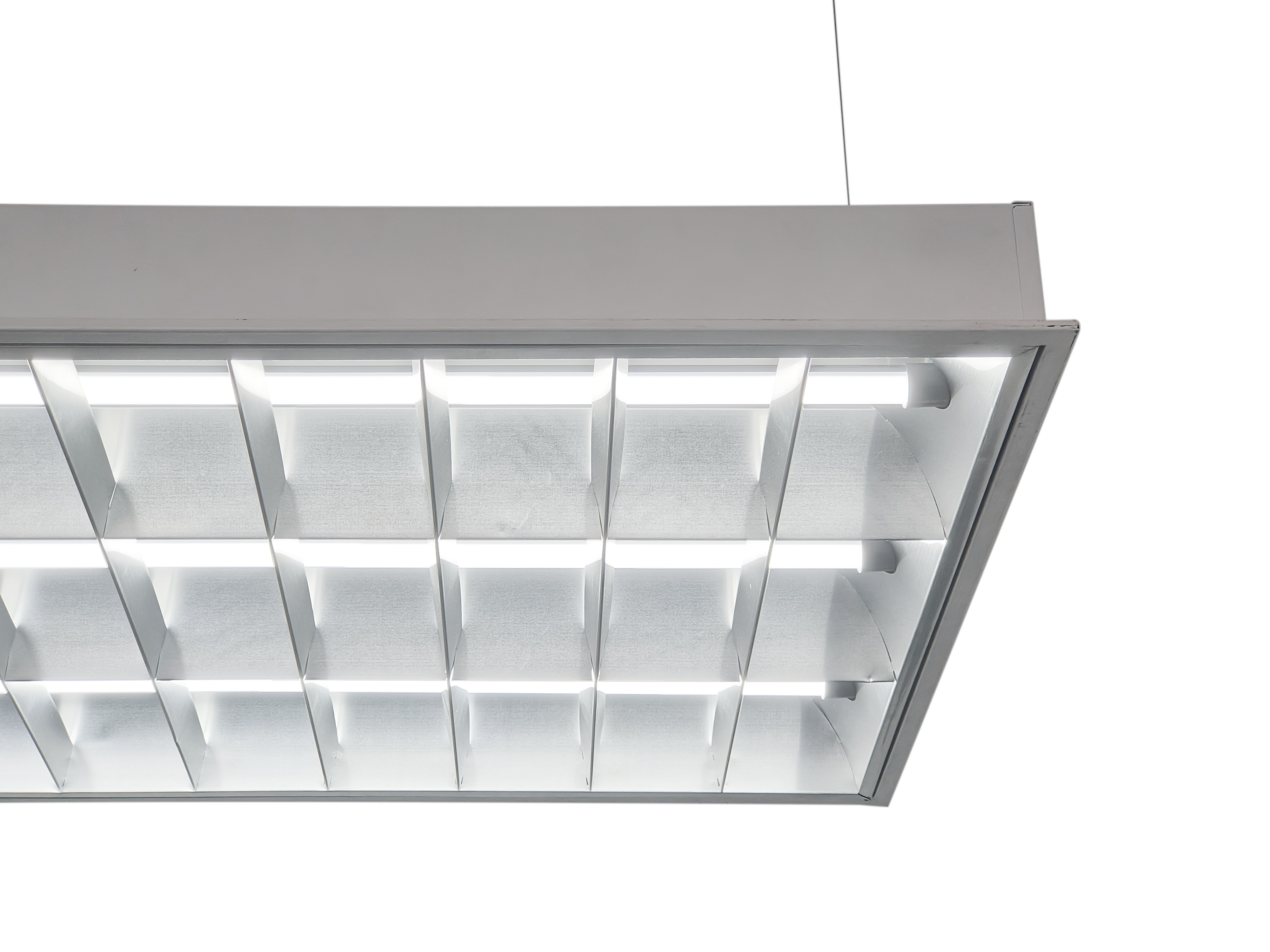

Recessed Type Lighting Panel with Replaceable LED Tube

Name: Recessed Type Lighting Panel with Replaceable LED Tube
Brand: Kocurnsiy - HVAC, Ventilation & Lighting Products
SKU: SY-600-300 (1A)
Availability: InStock
Rating: 5 (1 reviews)

No.SY-600-300 (1A)

The Recessed Type Lighting Panel with Replaceable LED Tube is designed for professional indoor environments such as offices, classrooms, hospitals, government buildings, and commercial facilities. Its iron and aluminum construction ensures excellent durability, efficient heat dissipation, and long-term stable performance. With a replaceable LED tube design, the panel supports easy maintenance while delivering uniform, low-glare illumination.

GET A QUOTE

Description

Key Product Features

Material: Iron + Aluminum
CRI: >80
Service Life: 50,000 hours
CCT Options: 3000K / 4000K / 5000K / 6000K
Ambient Temperature: –20°C to +45°C
Rated Voltage: AC 220–240V
Light Source: SMD

Compliance Standards

EN IEC 55015:2019 + A11:2020
EN IEC 61547:2023
EN IEC 61000-3-2:2019 + A1:2021
EN 61000-3-3:2013 + A2:2021
EN IEC 60598-2-1:2021 used with EN IEC 60598-1:2021 + AMD11:2022
IEC 62722-2-1
RoHS Compliant

Full Model Specification Table

Model	Rated Voltage	Watt (W)	Light Source	Luminous Flux (Lm)	Size (mm)
SY-600-300 (1A)	AC 220–240V	14W × 1	SMD	1352	600 × 300 × 80
SY-600-300 (2A)	AC 220–240V	14W × 2	SMD	2703	600 × 300 × 80
SY-600-600 (2A)	AC 220–240V	14W × 2	SMD	2703	600 × 600 × 80
SY-600-600 (3A)	AC 220–240V	14W × 3	SMD	4055	600 × 600 × 80
SY-1200-300 (1A)	AC 220–240V	28W × 1	SMD	2703	1200 × 300 × 80
SY-1200-300 (2A)	AC 220–240V	28W × 2	SMD	5407	1200 × 300 × 80
SY-1200-600 (2A)	AC 220–240V	28W × 2	SMD	5407	1200 × 600 × 80
SY-1200-600 (3A)	AC 220–240V	28W × 3	SMD	8110	1200 × 600 × 80
SY-1500-300 (1A)	AC 220–240V	35W × 1	SMD	3379	1500 × 300 × 80
SY-1500-300 (2A)	AC 220–240V	35W × 2	SMD	6759	1500 × 300 × 80
SY-1500-600 (2A)	AC 220–240V	35W × 2	SMD	6759	1500 × 600 × 80
SY-1500-600 (3A)	AC 220–240V	35W × 3	SMD	10138	1500 × 600 × 80

The full range of specifications supports a wide set of installation requirements, offering flexible lumen output, wattage, and form factor options to match professional lighting applications.
