Hello, fellow project contractors, facility managers, and B2B lighting distributors. Ricardo here. If you are procuring lighting solutions for industrial facilities, parking garages, or public tunnels in Southeast Asia, you already know that standard commercial lights simply do not survive. The combination of torrential monsoon moisture, relentless heat, and dusty operational environments creates a perfect storm for electrical failure.
To secure long-term project success and eliminate catastrophic maintenance callbacks, you need equipment engineered specifically for harsh environments. Today, we are breaking down the engineering and economic advantages of the IP65 LED Water-proof Light (SX-T5 Series)—often referred to in the industry as a Tri-Proof LED Light. We will explore exactly how its polycarbonate architecture and replaceable aluminum tubes deliver unwavering performance in the most demanding commercial scenarios.
When you are outfitting a warehouse in Jakarta or a transit tunnel in Kuala Lumpur, the ambient moisture levels can hover above 85% for months at a time. Standard IP20 or even IP44 fixtures allow microscopic water vapor to infiltrate the driver housing, leading to rapid short-circuiting and LED chip degradation.
This is where the IP65 waterproof rating becomes non-negotiable for Southeast Asian projects. The "6" indicates total protection against dust ingress—crucial for factories generating airborne particulates. The "5" guarantees protection against low-pressure water jets from any direction. Whether the facility is undergoing high-pressure washdowns or enduring heavy monsoon blow-in, the internal electrical components of our LED Water-proof Light remain completely isolated and secure.
A common mistake in B2B procurement is specifying metal-housed fixtures for tropical industrial zones. Even galvanized steel will eventually succumb to oxidation when constantly exposed to high humidity and salty coastal air. The resulting rust not only compromises the structural integrity of the light but also creates a major hazard in food processing or clean-room facilities.

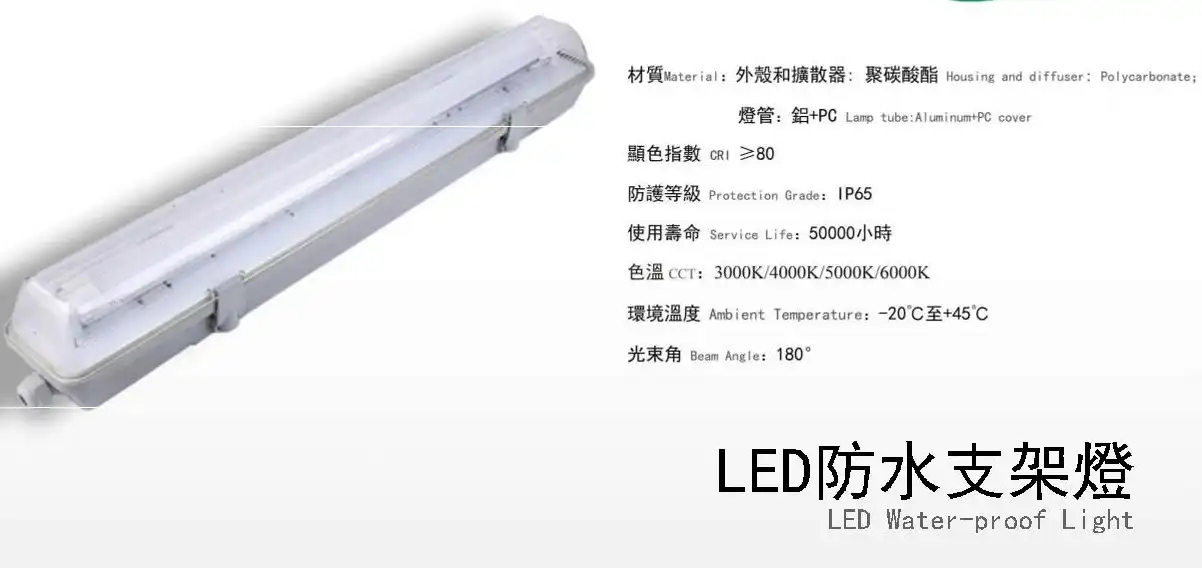

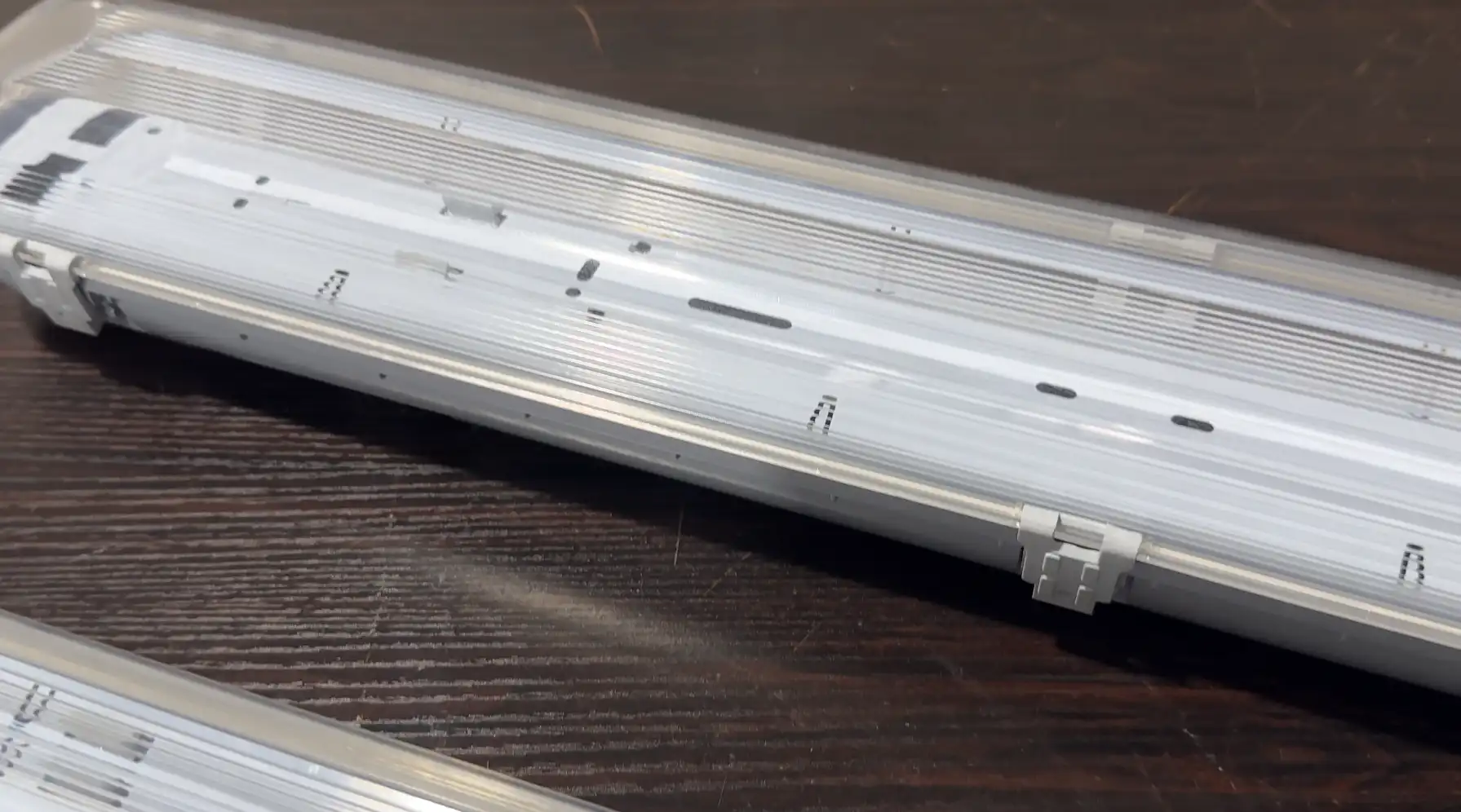

We bypassed this vulnerability entirely by engineering the housing and diffuser from high-grade Polycarbonate (PC). Polycarbonate is a remarkably resilient thermoplastic polymer. It is naturally immune to rust and corrosion, highly resistant to UV degradation, and possesses an impact resistance significantly higher than glass or standard acrylic. This means your Tri-Proof LED Light will not shatter from accidental impacts in a busy warehouse, ensuring absolute safety for the personnel below.
Heat is the silent killer of LED technology. In a non-air-conditioned Southeast Asian factory, ambient ceiling temperatures can easily exceed 40°C. If a lighting fixture cannot dissipate its own internal heat, the phosphor coating on the LED chips degrades rapidly, resulting in severe lumen depreciation and color shifting.

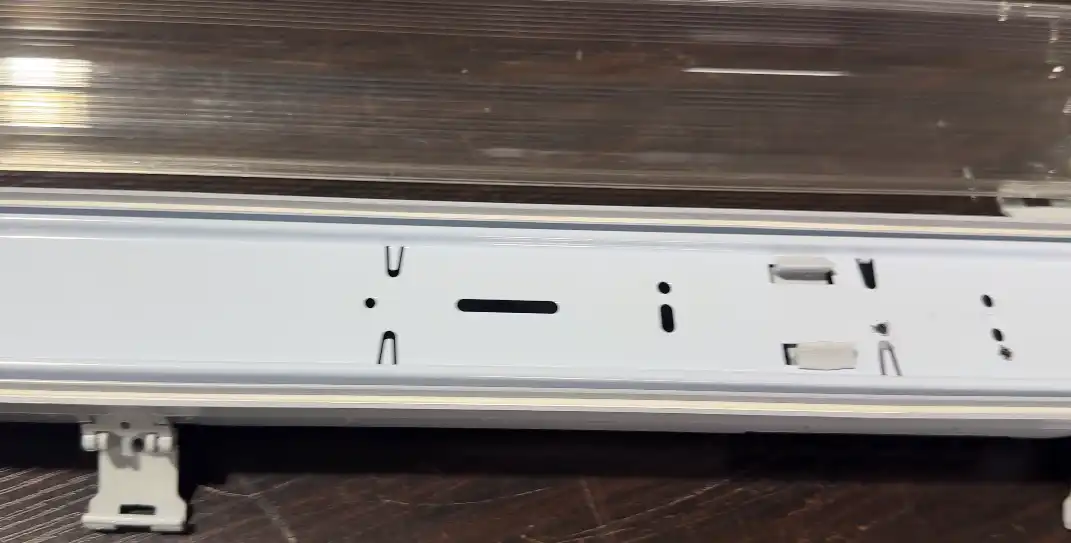

Our LED Water-proof Light is rated for a stable operating ambient temperature of -20°C to +45°C. We achieve this thermal stability through the internal lamp tube design, which utilizes an Aluminum + PC cover hybrid structure. The aluminum spine acts as a dedicated heat sink, aggressively pulling thermal energy away from the SMD diodes and transferring it safely to the external environment. This ensures the light output remains brilliantly consistent, even during the peak of tropical summers.
For facility managers, the true cost of a lighting fixture is not the purchase price; it is the maintenance overhead. Many modern industrial fixtures are fully integrated, meaning when the LED eventually fails, the entire housing must be unscrewed, disconnected, and thrown away. This is a massive waste of capital and labor.

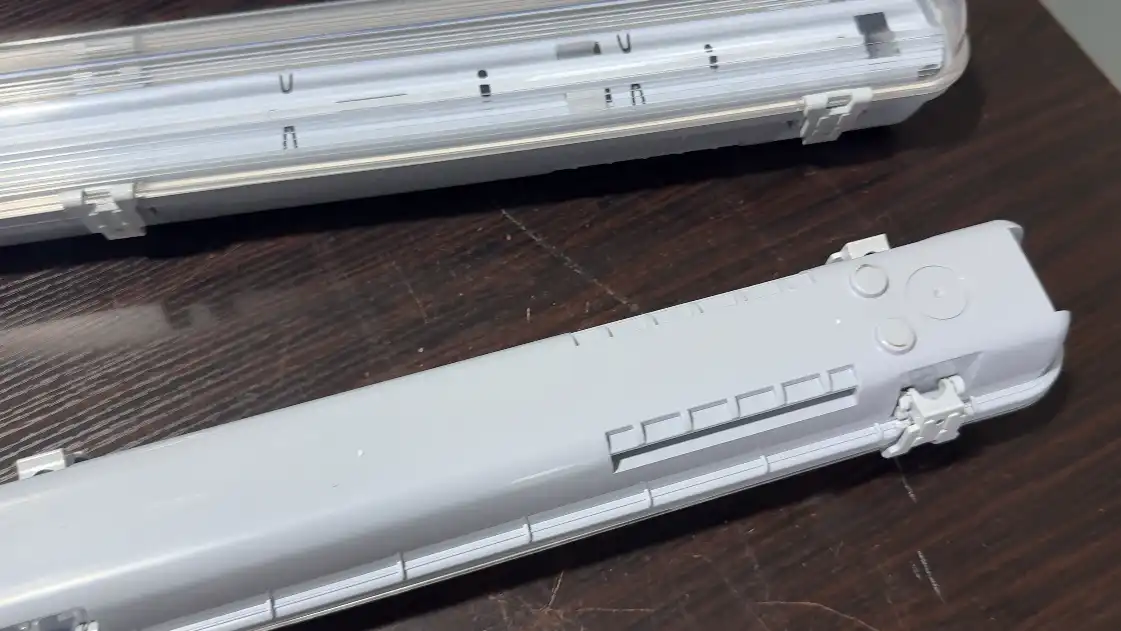

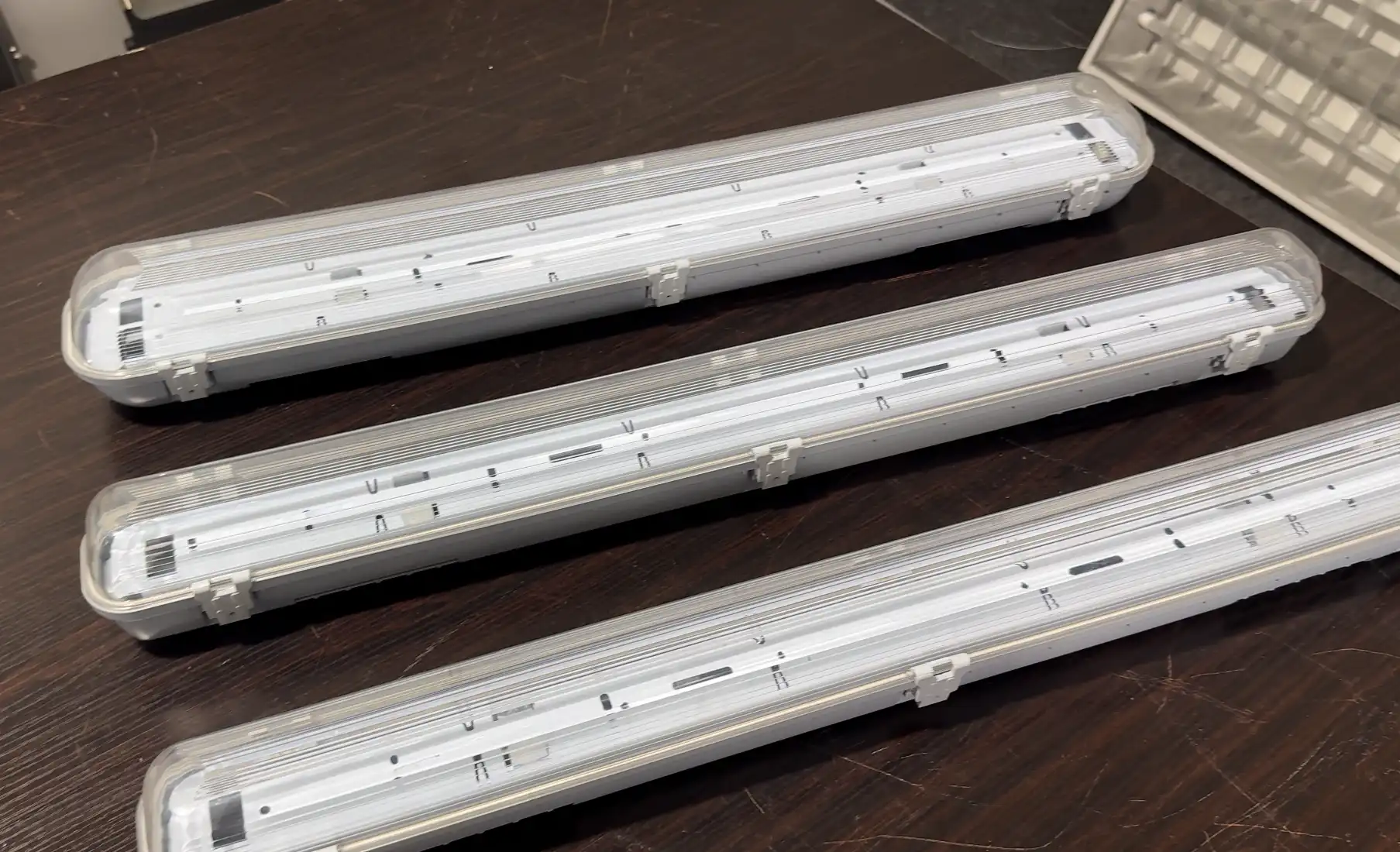

We designed the SX-T5 Series with replaceable ORMT-5LED tubes. When maintenance is finally required, your team simply unclips the polycarbonate diffuser, swaps the tube, and snaps it back together in seconds. This modularity reduces maintenance labor costs by up to 70% over the lifecycle of the building. Paired with a baseline 50,000-hour service life, this system delivers an unbeatable Return on Investment (ROI).
No two commercial projects are identical. A low-ceiling utility room requires entirely different photometry than a massive logistics distribution center. To give B2B procurement teams ultimate scalability, we manufacture the LED Water-proof Light in an extensive range of configurations, spanning from 600mm to 1500mm, in both single and double-tube variants.
| Model | Power | Luminous Flux | Size (mm) | Tube Config |
|---|---|---|---|---|
| SX-T5N1-600 | 9W | 1321 lm | 670 × 105 × 108 | Single |
| SX-T5N1-1500 | 22W | 3230 lm | 1570 × 105 × 108 | Single |
| SX-T5N2-600 | 18W | 2643 lm | 670 × 105 × 108 | Double |
| SX-T5N2-1500 | 44W | 6460 lm | 1570 × 105 × 108 | Double |
In high-risk environments like public parking garages and transit tunnels, visibility equates directly to safety. Narrow beam angles create harsh pools of light surrounded by dark, dangerous shadows.
Our Tri-Proof LED Light features a sweeping 180° beam angle. When combined with the frosted polycarbonate diffuser, this wide optic throws a smooth, uniform wash of light across massive floor plans, eliminating blind spots. Furthermore, with a CRI of >80, security personnel and CCTV camera systems can accurately identify vehicle colors, warning signs, and individuals, ensuring maximum operational security.
When you shift the procurement conversation from CAPEX (Capital Expenditure) to OPEX (Operational Expenditure), the value of this fixture becomes undeniable. A lifespan of 50,000 hours translates to nearly 5.7 years of continuous, 24/7 non-stop operation, or over 11 years in a standard 12-hour factory shift.
By drastically reducing the frequency of cherry-picker rentals for high-bay replacements, eliminating the cost of replacement tubes every year, and slashing the overall kilowatt-hour consumption via high-efficiency SMD LEDs, the payback period for upgrading to the Kocurnsiy IP65 LED Water-proof Light is remarkably short.
In the modern Southeast Asian construction landscape, government infrastructure projects and multinational corporate facilities demand strict regulatory compliance. Supplying uncertified hardware is a guaranteed way to lose a bidding contract.
We ensure that our B2B partners bid with absolute confidence. The SX-T5 series is rigorously tested and globally certified. It holds the CE Mark and is RoHS Compliant. Furthermore, it meets stringent electrotechnical standards including EN IEC 55015:2019 (radio disturbance), EN IEC 61547:2009 (immunity), and EN IEC 60598-1:2021 (general luminaire safety requirements). This exhaustive compliance portfolio guarantees smooth customs clearance and immediate project engineer approval.
Executing a massive commercial build requires a supply chain partner who understands the stakes. At Kocurnsiy (Zhongshan Season Trading Co., Ltd.), we do not just trade products; we manage integrated manufacturing and export logistics. Operating out of Jucheng Industrial Park in Zhongshan, the heart of China's lighting capital, we offer our international partners unparalleled access to high-volume inventory, OEM customization, and rock-solid delivery schedules.
Procuring lighting for Southeast Asian industrial projects does not have to be a gamble against the climate. By specifying the IP65 LED Water-proof Light, you are investing in an unyielding polycarbonate fortress that protects high-efficiency LED tubes from the harshest monsoons and factory environments. With its modular design, 50,000-hour longevity, and strict international certifications, this Tri-Proof fixture is the definitive standard for modern, profitable facility management.
Q1: Is this product suitable for semi-outdoor or fully outdoor areas?
Yes, its certified IP65 waterproof rating ensures highly reliable operation in wet, dusty, and semi-outdoor environments, such as parking garages, under-canopy walkways, and humid utility rooms.
Q2: What specific LED tube types are supported by this fixture?
The product utilizes replaceable ORMT-5LED tubes. Depending on the exact housing size you specify (600mm to 1500mm), the wattage scales across 9W, 18W, and 22W configurations.
Q3: Does the lamp work reliably in extreme cold or non-ventilated hot environments?
Absolutely. The fixture is engineered with an operating ambient temperature range of -20°C to +45°C. The internal aluminum spine of the tube provides excellent thermal management to prevent overheating.
Q4: How long does the LED array last, and does it require frequent maintenance?
The engineered service life is up to 50,000 hours. Because the LED tubes are replaceable and protected by an impact-resistant polycarbonate housing, ongoing maintenance costs are incredibly low.
Ready to secure highly reliable industrial lighting for your next facility build? Contact us for specialized B2B project quotes, bulk shipping details, and OEM configurations.
