Our LED Ceiling Light was installed at the Hi Yip Factory Building in Yuen Long, Hong Kong. With IP54 protection and energy-efficient features, it provides high-quality lighting for the building's interior, ensuring long-lasting durability and optimal lighting performance.
Product Overview
The LED Ceiling Light is designed for high efficiency and long-lasting performance. Featuring a CRI rating of >80 and an IP54 protection grade, it offers a reliable solution for lighting in various indoor environments. The 30000 hours service life and a beam angle of 120° ensure uniform illumination across a large area, while its ambient temperature range of -20°C to +45°C makes it suitable for use in diverse conditions.
- Material: Iron + PC
- CRI: ≥80
- Protection Grade: IP54
- Service Life: 30,000 hours
- Color Temperature: 3000K/4000K/6500K
- Ambient Temperature: -20°C to +45°C
- Beam Angle: 120°

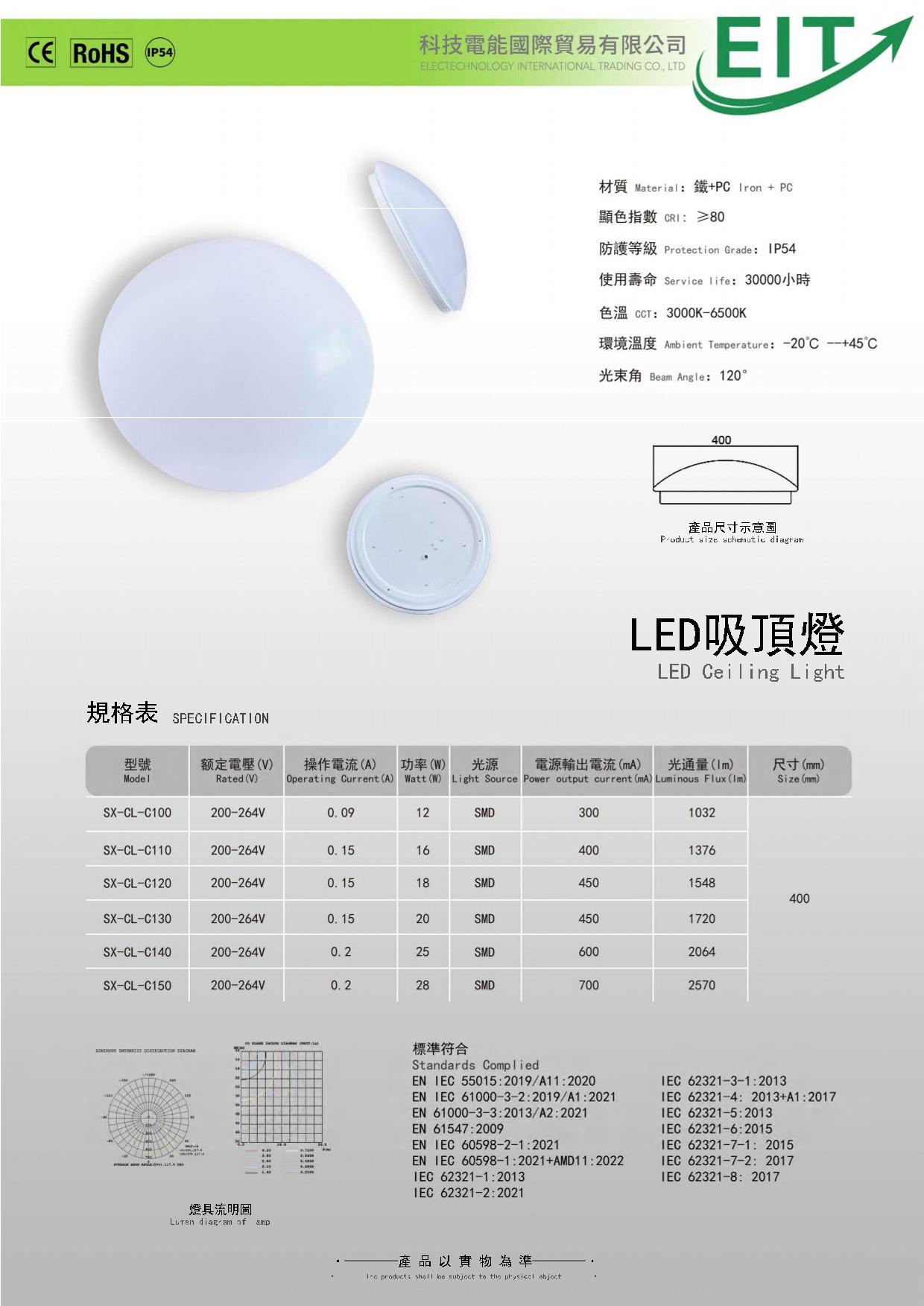

Product Specifications
| Model | Rated Voltage | Operating Current | Watt | Light Source | Power Output Current | Luminous Flux | Size |
|---|---|---|---|---|---|---|---|
| SX-CL-C100 | 200-264V | 0.09A | 12W | SMD | 300mA | 1032lm | 400mm |
| SX-CL-C110 | 200-264V | 0.15A | 16W | SMD | 400mA | 1376lm | 400mm |
| SX-CL-C120 | 200-264V | 0.15A | 18W | SMD | 450mA | 1548lm | 400mm |
| SX-CL-C130 | 200-264V | 0.18A | 20W | SMD | 450mA | 1720lm | 400mm |
| SX-CL-C140 | 200-264V | 0.2A | 25W | SMD | 600mA | 2064lm | 400mm |
| SX-CL-C150 | 200-264V | 0.2A | 28W | SMD | 700mA | 2570lm | 400mm |

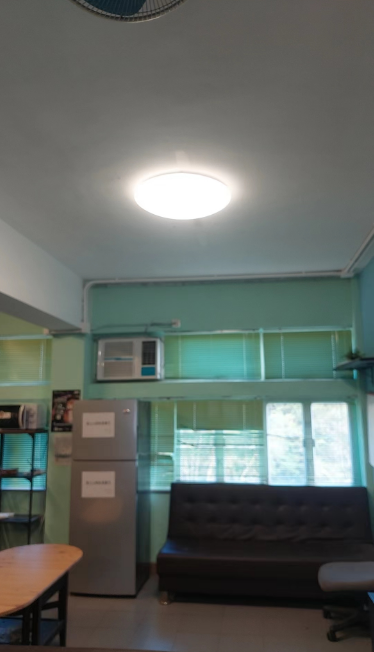

Application at Hi Yip Factory Building
The LED Ceiling Light was installed at the **Hi Yip Factory Building** located at **4-6 Hi Yip Street, Yuen Long, Hong Kong**. The lighting provides optimal illumination for indoor spaces, ensuring energy-efficient and consistent performance for office areas.
- Location: Hi Yip Factory Building, 4-6 Hi Yip Street, Yuen Long, Hong Kong
- Product: LED Ceiling Light
- Features: Durable, energy-efficient lighting solution
- Benefits: High luminosity, long service life, and low maintenance cost
Standards and Compliance
The **LED Ceiling Light** complies with several international standards to ensure safety, quality, and environmental protection.
- EN IEC 55015:2019/A11:2020
- EN IEC 61000-3-2:2019/A1:2021
- IEC 62321:1:2013
- IEC 62321:7-1:2015
